|Name:||Mechanical Grapple (with synchronizing linkage type)|
|Applications:||For waste metals disposal, stones, woods/timbers/logs loading, unloading and moving|
|Excavator Operating Weight:||From 6 ton or above|
|Place of Origin:||Guangdong, China (Mainland)|
|Min.Order Quantity:||1 piece|
|Supply Ability:||200 pcs mechanical grapple per month|
|Delivery time:||within 30 days after received the deposit|
High Quality Mechanical Grapple, SUP Built!
SUP specializes in mechanical grapple,hydraulic grapple and timber grapple/log grapples.
Mechanical Grapple is an ideal work tool for waste metals disposal, stones, woods/timbers loading, unloading and moving.

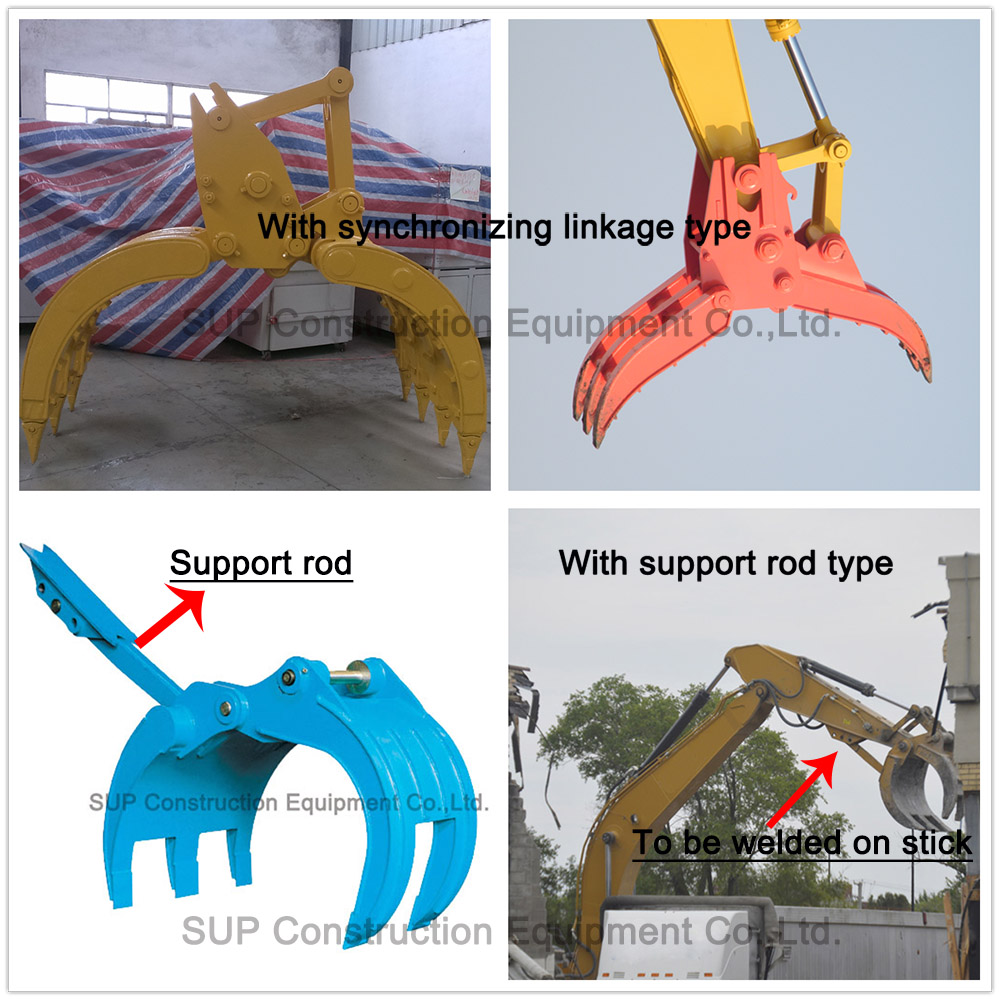

We have two types Mechanical Grapple:

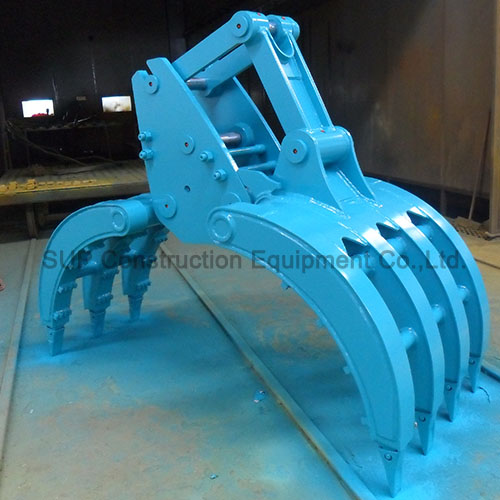

One is with synchronizing linkage type, which with synchronizing linkage built inside, can be pinned on the stick/arm and used directly,don't need any changed of your machine,easy installation and durable.
Another is with support rod type, which come with a support rod, the rod will need to be welded on the stick/arm as a support for the fixed jaw tine, simple design and durable.
- Wide strong grasping force and wide opening.
- driven by bucket cylinder,convenient and quick for operation.
Choose SUP, you can always enjoy long lifetime grapples with low maintenance!
1)SUP adopt latest CAD making drawings and the advanced FEM (Finite Element Method) to analyze the stress distribution of products,
through which we optimize the structure the best,thickness of every steel plates are strictly selected,
to make sure each our attachment is reliable and durable.
2)Material cutting is done by advance CNC flame plasma cutting machines.
3)Every steel plates are well beveled before welding, straight plates are beveled by large milling machine, circular or arc area are beveled by OTC
plasma cutting robot,this can improve the welding quality greatly.
4)Welding is done partly by skillful workers with at least 4 years experience, and partly by robotic welding machine, excellent welding quality is
5)Ultrasonic flaw detector is used to detect products to ensure every welding beads are good enough.
6)Surface treatment for the products processed in Large sandblasting room,the treatment can release surface stress of product, remove dirt,
improve the adhesive force between the paint and products surface.
Applicable Excavator Brands:
Liebherr,Caterpillar,Komatsu,Hitachi,Kobelco,Volvo,Sumitomo,Doosan/Daewoo,Hyundai,Case,Kato,JCB,John Deere,Sany,XCMG,Xiagong,Liugong,Zoomlion,Lonking excavators.
Volvo Excavator: EC120,EC140,EC170,EC200,EC210,EC220,EC240,EC250,EC290,EC300,EC350,EC360,EC380,EC460,EC480,EC700,EC750,EC950
CASE Excavator: CX130,CX135,CX160,CX180,CX210,CX220,CX225,CX240,CX260,CX290,CX360,CX300,CX350,CX380,CX470,CX490,CX500,CX700,CX800.
Sumitomo Excavator: SH100,SH120,SH130,SH180,SH200,SH210,SH240,SH260,SH280,S280,S340,SH300,SH350,SH360,SH380,SH400,SH450,SH480,SH700.
CATO Excavator:HD250,HD400,HD450,HD550,HD700,HD800,HD820,HD900 HD1230,HD1250,HD1430,HD1880.
Choose SUP, gain superior quality attachments and long-term partner.
