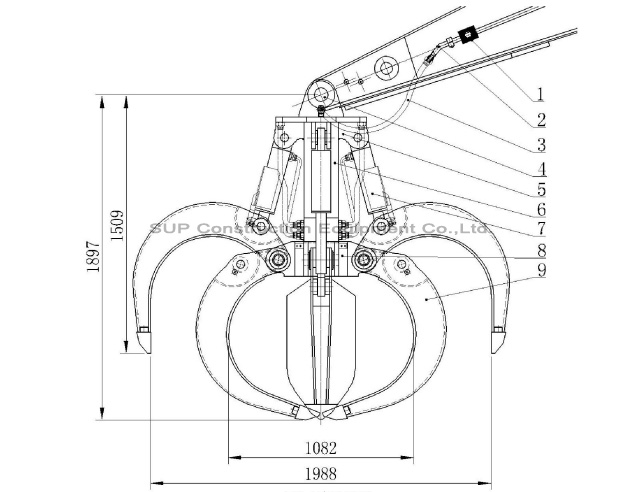

1.Stop Valves2.Hydraulic pipe 3.Hose 4.Pin 5.Cylinder connection seat 6.Center connected column 7.Cylinder 8.Tine connection seat 9.Tine
Installation Instructions
1.Install one set of additional hydraulic line on both sides of boom and arm.
2.All the bosses and pin holes should be greased before installation.
Application
Grab and load scrap steel, stone, construction waste and household waste.
Operating temperature：-20℃~+50℃
Maintenance
1.Grease the pins of grab after every four-hour continue working.
Fill lubrication oil before working everyday.
2.Tubing damaged should be replaced immediately, loose pipe joints
should be tightened immediately
Excavator Attachments - long reach boom,super long front,long reach front,high reach demolition,telescopic arm, excavator buckets,grapple,long boom,long stick- SUP Construction Equipment Co.Ltd.
Cautions
1.Hydraulic non-rotary orange peel grab must be installed with match excavator,work under ultra-high temperature environment such as close to boiler is prohibited,And comply with the relevant provisions of the excavator operation
2.The captured material can not be more than 1.2
meters in length, The grab weight can not exceed the corresponding
model allows the load, Otherwise, easily lead to excessive distortion
grab, and the damage to the fuel tank and the overall structure
3.Please obey the Relevant Regulations of Excavator Operation.
